When you choose a power adapter for your electrical device, you better know what plug you need first. But there is more than one standard being used in the world. A different country may use different power cord types, different plugs, and connectors, especially the plug types. So today let’s learn about the two-pin plug first.

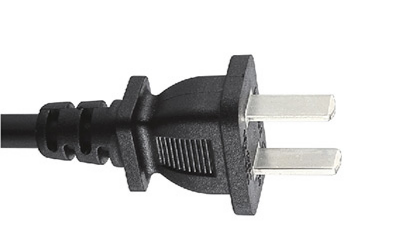

Two-pin plug is a basic type of electrical plug. It has two pins: a hot pin and a neutral pin. These pins enable the plug to connect to a power source and create a circuit that will enable the operation of devices. The two-pin plug is ideal for smaller appliances. The hot pin connects to the hot slot of the receptacle, drawing current to power the load. The neutral pin connects to the neutral slot, returning the current to the receptacle and completing the circuit. These plugs can be easily inserted into two-slot receptacles. The two-pin plugs is not rewirable and must be supplied with a flexible cord. It can be inserted in either direction, so hot and neutral are connected arbitrarily. To improve contact with socket parts the plug has slightly flexible pins which converge toward their free ends.

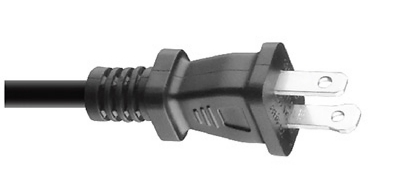

There are also polarized plugs. The polarized plugs feature a neutral pin that is wider than the hot pin, ensuring they can only be inserted in one orientation. These are commonly used in North America and Mexico. While non-polarized plugs can fit into polarized sockets, the reverse is not true.

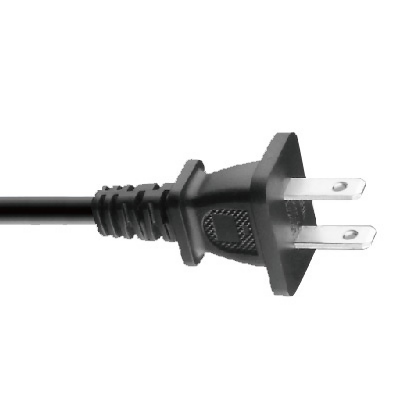

Some two-pin plugs have two flat pins with hole near the tip. According to the official regulations by NEMA (National Electrical Manufacturers Association), these holes are entirely optional and intended for manufacturing purposes only. Some sockets, however, use the holes in the pins to hold the plug more tightly. The contact wipers that the pins slide into have bumps on them. These bumps fit into the holes so that the outlet can grip the plug’s prongs more firmly. This prevents the plug from slipping out of the receptacle due to the weight of the plug and cord. It also improves the contact between the plug and the outlet. Most other sockets do not have those bumps but just two spring-action blades that grip the sides of the plug pin. Of course, in such cases the holes are not necessary. The two flat pins are suitable for basic electronics and appliances that do not require grounding. And they are standard in North and Central America, as well as in parts of Asia like Japan and Vietnam.

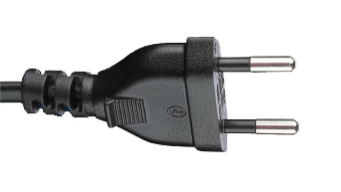

The two-pin plugs also have this one. They feature two round pins, and they have an insulated covering 10 mm of their length from the base. They are standard in most of Europe, as well as in parts of South America and Asia.

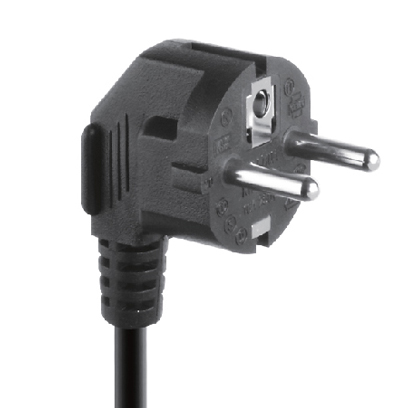

This plugs also feature two round pins. They include a female contact or hole designed to fit the socket’s earthing pin, located beneath the plug pins. The asymmetrical pin arrangement in this plugs prevents polarity reversal. Commonly referred to as “French plugs,” they are widely used in France, Belgium, Slovakia, and Tunisia.

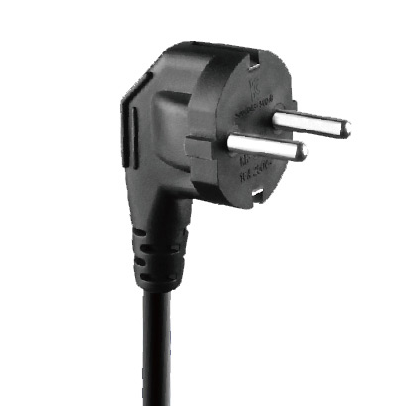

This plug has two round pins. Unlike Europlugs, this plug does not have an insulated sleeve. The insulated sleeve in electrical plugs makes their operation safer. They can be used in high energy appliances.
The above mentioned are only part of the two-pin plugs, not all of them. We can choose the right plug according to the actual usage. Hope these can help you.
