What Is A Wall Mount Power Adapter

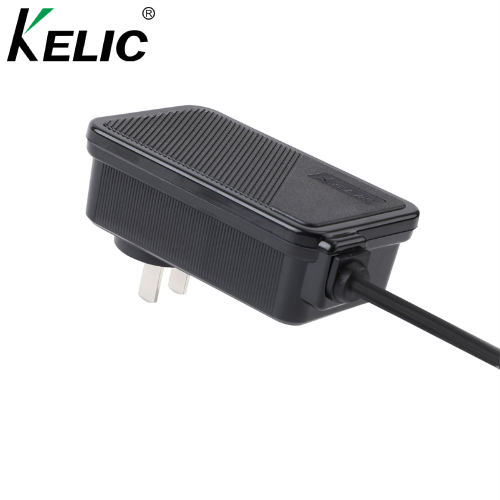

Wall Mount Power Adapter

dc power adapter are divided into wall mount power adapter and Desktop Power Adapter. The main difference between a desktop power adapter and a wall power adapter is that the power adapter for desktop needs to be connected to the AC power cord of the host.

A wall power adapter is a power adapter whose body can be plugged directly into a socket. A wall-mounted power adapter plugs into a standard wall outlet and converts alternating current from the wall outlet to the direct current required and suitable for the device.

How a Wall Mount Power Adapter Works

The working principle of the wall-mounted adapter is to rectify and regulate the input AC power, and convert the output to the direct current required by the equipment, specifically including the following steps:

1） Input and voltage rectification: The power adapter receives alternating current from the socket through a rectifier circuit. The circuit typically contains diodes that convert alternating current into pulsating direct current. In this process, the voltage waveform is "shaved" off the negative half, leaving only the positive half.

2） Filtering: The purpose of this step is to get smooth DC, because the rectified current is pulsating DC, so the filter is needed to remove the AC component of pulsating DC.

3） Voltage regulator: The voltage and current of the direct current are adjusted to the required level by the regulator. Common voltage regulation methods include linear voltage regulation and switching voltage regulation. The linear regulator controls the output voltage by adjusting the resistance. The switching regulator adjusts the amount of energy transferred to the load by rapidly switching the transistor, so as to achieve the purpose of efficient voltage regulation.

4） Output: Finally, the direct current after processing in the above steps is output to the device. Finally, this process will also include some safety protection such as over-voltage protection, over-temperature protection, short circuit protection, etc., in order to prevent damage to the connected equipment during use.

Wall-mounted power adapter has many advantages such as space saving, neat and beautiful, easy to carry, energy saving and high efficiency, etc. Under the premise of ensuring functionality, it also provides better space utilization efficiency and safety, so it is a recommended choice in home and office places.
