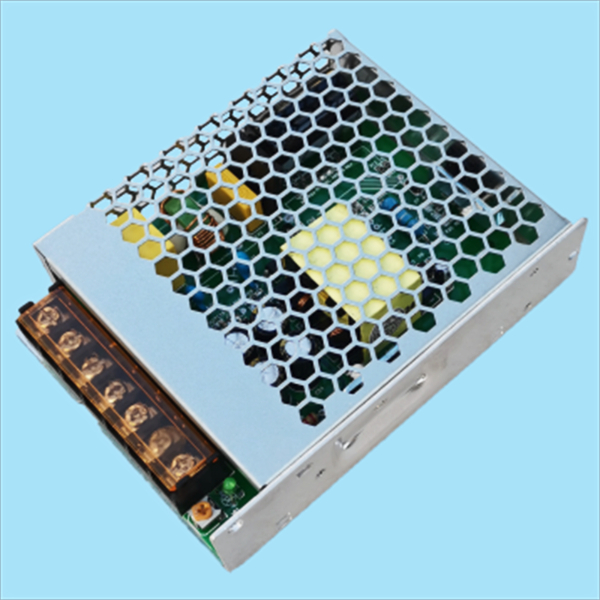

Switching Mode Power Supply for Electrical Devices

Product Introduction:

The working principle of the Switch Power Supply is based on high-frequency switching technology and power management technology. When the switch-mode power supply is operating, the input power supply is first converted into stable direct current through the input rectifier filter circuit. Subsequently, the high-frequency switching circuit, driven by the control circuit, rapidly switches the switching transistor in a high-frequency manner to produce a pulse voltage. These pulse voltages pass through the transformer and then through the output rectifier filter circuit to be converted into a smooth DC output. Meanwhile, the feedback control circuit continuously monitors the output voltage and current, adjusting the switching state of the switching transistor to maintain the stability of the output voltage and current.

Switching power supplies have begun to be widely used in various electronic equipment, such as computers, communication devices, and industrial control equipment. With the continuous advancement of electronic technology, the application field of ultra-thin switch power supplies will continue to expand.

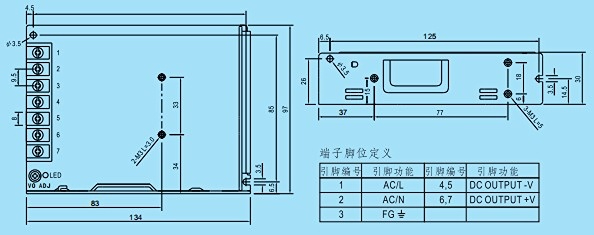

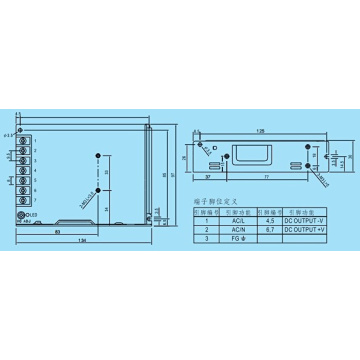

Product Size:

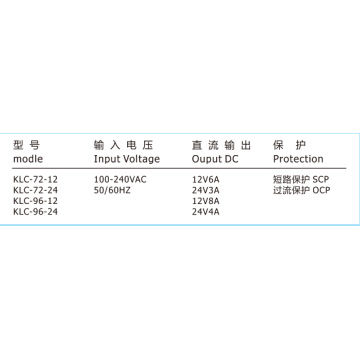

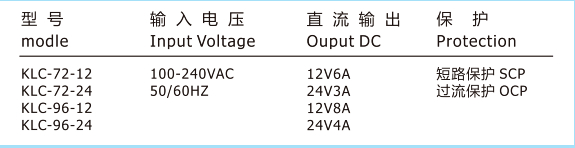

Product Detailed Parameters:
